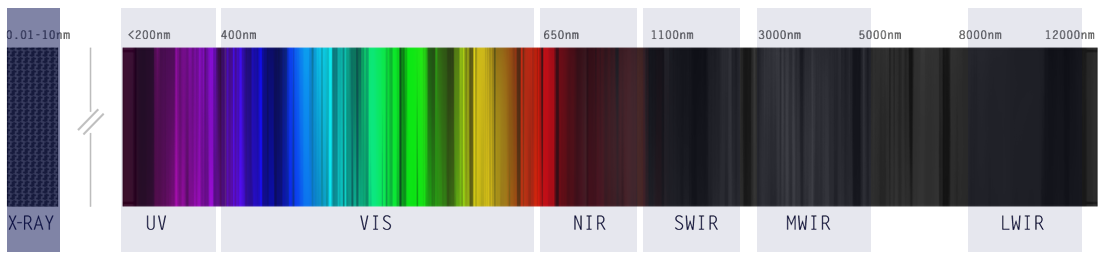

The X-Ray spectrum encompasses wavelengths from 0.01nm to 10nm.
Teledyne Imaging offers extensive camera and detector technology to serve applications in the X-Ray spectrum. With our combined expertise and technical capabilities, we can offer solutions for even the most challenging applications.
Notable space X-Ray missions that have been enabled by Teledyne Imaging include Chandrayann-1 and ESA's XMM-Newton X-ray space observatory, which on 10th December 2019 celebrated its 20th launch anniversary, supplying a constant stream of outstanding science.
Resolution: 2048 × 2048 Pixel size: 13.5 µm Well suited to the most demanding applications requiring a high dynamic range.
Resolution: 512 × 1024 Pixel size: 50 µm
Resolution: 384 × 288 Pixel size: 22 µm Inverted mode X-Ray to NIR sensor primarily intended to suit the requirements of astronomy and scientific measuring instruments.
Resolution: 384 × 1024 Pixel size: 27 µm Close butted CCD, with a dead region of less than 300 microns wide on three sides
Resolution: 600 × 600 Pixel size: 40 µm Close butted back-illuminated CCD
Resolution: 512 × 580 Pixel size: 16 µm Back illuminated CCD which maximizes the quantum efficiency in the low energy X-ray region.
Resolution: 1024 × 512 Pixel size: 50 µm Back illuminated, deep depleted, low noise CCD image sensors for use in X-ray detection
Resolution: 0 × 0 Pixel size: 50 µm Back illuminated, deep depleted, low noise CCD image sensors for use in X-ray detection
